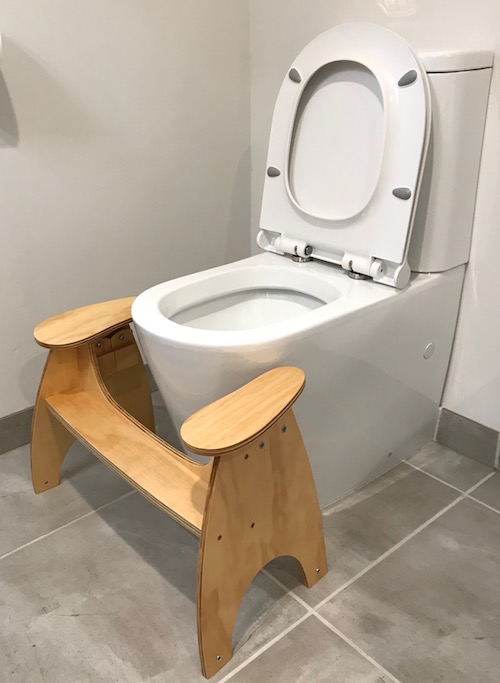

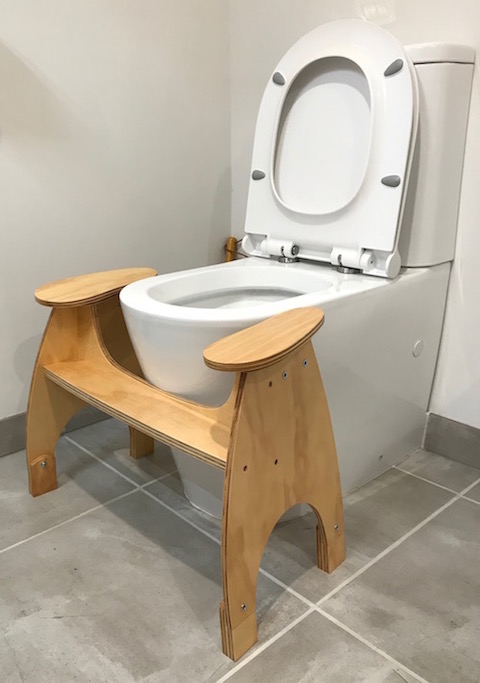

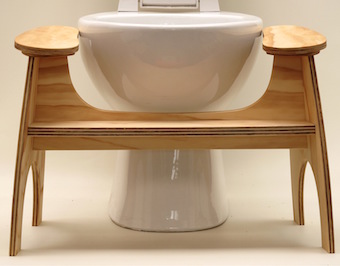

To ensure a great fit, the Lillipad Squatting Platform has adjustable footpads, and is available in two standard heights as well as the height adjustable model. The Lillipad is designed to sit level with or lower than the rim of the toilet (see photos below). The footpads slope forward, and tilt slightly towards each other for comfort.

My Image


The short Lillipad is 323 mm (12 ¾ in.) high, 555 mm (21¾ in.) wide, and 282 mm (11
in.) deep.
The tall Lillipad is 381 mm (15 in.) high, 565 mm (22¼ in.) wide, and 285 mm (11¼ in.) deep.
The height adjustable Lillipad has two height settings 380 mm (15 in.) high and 320 mm (12 ¾ in.) high

To order the best Lillipad for your toilet — lift the toilet seat and measure from floor level to the porcelain rim of the toilet.

If the measurement is greater than or equal to 381 mm (15 in.) choose the tall Lillipad.
If the measurement is less than 381 mm (15 in.) choose the short Lillipad.

We recommend the height adjustable Lillipad — for toilets between these heights, if you shift house often, or are buying for a friend.

A tall Lillipad will work on a short toilet and a short Lillipad will work on tall toilet.

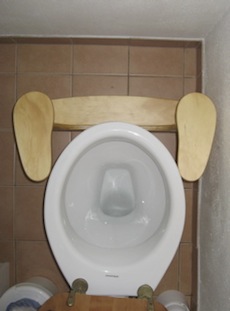

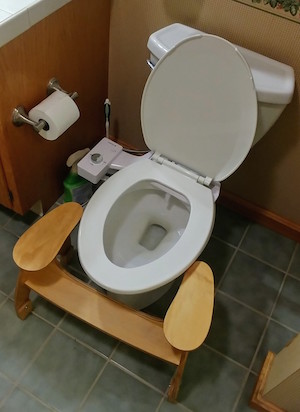

The Lillipad is in position in the photos below, note the footpads don’t span the widest part of the toilet, rather back 125 mm (5 in.) from the front. The inside gap between the ‘heels’ of the footpads on the Lillipad can be easily adjusted from 315 mm (12
in.) to 375 mm (14¾ in.)

squat_toilet_adaptor
squat_toilet_conversion


In the photos above the Lillipad is in the correct position but it just fits the space around the toilet.
The wall in front of the toilet should be no closer than 300 mm (12 in.), and the wall to the side of the toilet no closer than 100 mm (4 in.).

If the distance from the floor to the top of the rim of the bowl is 15 inches (381 mm), on the border between short and tall, are there other considerations in choosing the short or tall Lillipad?
If you already squat on the rim of the toilet and have no problems aiming to urinate then I would suggest the tall — you will be able to position your heels closer together with your feet flatter using the rim of the toilet. Women will find it a bit easier to aim when urinating on the shorter model as they are positioned lower to the bowl. In this situation we recommend the height adjustable Lillipad.

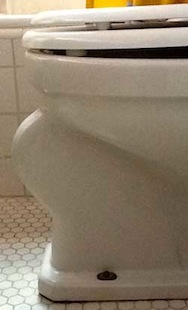

bulge_toilet


If your toilet has a frontal protrusion (as in the photo), then the Lillipad won’t fit well. For this unusual shaped toilet we recommend customising the squatting platform available in the plans.


toilet_stool_poop


The Lillipad Step is 203 mm (8 in.) tall, 395 mm (15.5 in.) wide, and 165 mm (6.5 in.) deep.

crouch_squat_poop
